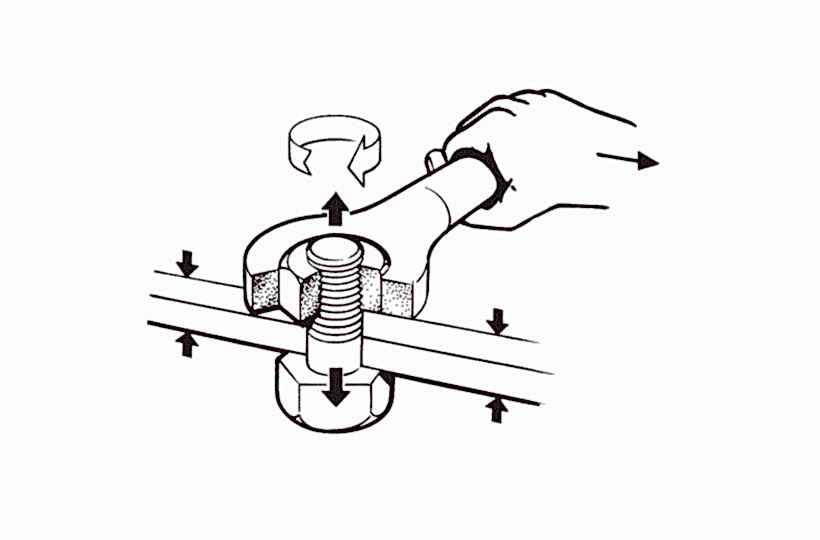

Tork Tablosu?
Tork kontroll� ekipmanlar�n kullan�m�nda tork tablosuna ihtiya� duyulmaktad�r. C�vata ve somun kalitelerine g�re bu de�erler de�i�iklik g�stermektedir. 8.8, 10.9, 12.9 gibi c�vata sertlik kalitelerine g�re tork de�erleri de�i�mektedir.
| Metrik �l�� | Somun �l��s� | Alyan �l�� | 3.6 M [Nm] | 5.6 M [Nm] | 6.9 M [Nm] | 8.8 M [Nm] | 10.9 M [Nm] | 12.9 M [Nm] |
|---|---|---|---|---|---|---|---|---|
| M4 | 7 | - | 0,71 | 1,19 | 1,91 | 2,54 | 3,57 | 4,29 |
| M5 | 8 | - | 1,71 | 2,85 | 4,56 | 6,09 | 8,56 | 10,3 |
| M6 | 10 | - | 3,43 | 4,51 | 8,73 | 10,3 | 14,71 | 17,65 |
| M7 | 11+12 | - | 5,59 | 7,45 | 14,22 | 17,16 | 24,52 | 28,44 |
| M8 | 13+14 | - | 8,24 | 10,379 | 21,57 | 25,5 | 35,3 | 42,17 |
| M10 | 15+17 | 8 | 16,67 | 21,57 | 42,17 | 50,01 | 70,61 | 85,32 |
| M12 | 19+21 | 10 | 28,44 | 38,25 | 73,55 | 87,28 | 122,58 | 147,1 |
| M14 | 22+23 | 12 | 45,11 | 60,8 | 116,7 | 138,27 | 194,17 | 235,36 |
| M16 | 24+26 | 14 | 59,63 | 93,16 | 178,48 | 210,84 | 299,1 | 357,94 |
| M18 | 27 | 14 | 95,13 | 127,49 | 245,17 | 289,3 | 411,88 | 490,34 |
| M20 | 30 | 17 | 135,33 | 180,44 | 348,14 | 411,88 | 578,5 | 696,28 |
| M22 | 32 | 17 | 182,4 | 245,17 | 470,72 | 558,98 | 784,54 | 941,44 |
| M24 | 36 | 19 | 230,46 | 308,91 | 598,21 | 710,99 | 1000,28 | 1196,42 |
| M27 | 41 | 19 | 343,23 | 460,92 | 887,51 | 1049,32 | 1480,81 | 1775,01 |
| M30 | 46 | 22 | 465,82 | 622,73 | 1206,23 | 1421,97 | 2010,38 | 2402,64 |
| M33 | 50 | 24 | 632,53 | 848,28 | 1627,91 | 1931,92 | 2716,46 | 3265,63 |
| M36 | 55 | 27 | 813,96 | 1088,54 | 2098,64 | 2481,1 | 3491,19 | 4197,27 |
| M39 | 60 | 27-30 | 1059,12 | 1412,17 | 2716,46 | 3226,41 | 4530,7 | 5442,72 |
| M42 | 65 | 32 | 1304,29 | 1745,59 | 3363,7 | 3991,33 | 5609,44 | 6727,4 |
| M45 | 70 | - | 1637,72 | 2177,09 | 4207,08 | 4991,62 | 7011,8 | 8414,16 |
| M48 | 75 | 36 | 1980,96 | 2638,0 | 5080,0 | 6021,32 | 8473,0 | 10149,94 |
| M52 | 80 | 36 | 2539,94 | 3393,12 | 6541,08 | 7747,3 | 10885,45 | 13091,96 |
| M56 | 85 | 41 | 3167,57 | 4226,69 | 8149,38 | 9649,8 | 13582,29 | 16279,14 |
| M60 | 90 | 46 | 3932,49 | 5246,59 | 10100,91 | 11964,19 | 16867,54 | 20201,82 |
| M64 | 95 | 46 | 4736,64 | 6305,71 | 12160,32 | 14415,86 | 20299,89 | 24320,64 |
| M68 | 100 | 50 | 5788 | 7727 | 14891 | 17645 | 24809 | 29754 |
| M72 | 105 | 55 | 6913 | 9228 | 17785 | 21074 | 29631 | 35537 |
| M76 | 110 | 60 | 8275 | 11047 | 21290 | 25227 | - | - |
| M80 | 115 | 65 | 9625 | 12849 | 24763 | 29341 | - | - |
| M90 | 130 | 70 | 14298 | 24941 | 36271 | 42978 | - | - |
| M100 | 145 | - | 19613 | 26182 | 50460 | 59790 | - | - |
| M110 | 155 | - | 26391 | 35230 | 67898 | 80453 | - | - |
| M120 | 175 | - | 34588 | 46174 | 88990 | - | - | - |
| M130 | 185 | - | 44300 | 59159 | 114015 | - | - | - |
| M140 | 200 | - | 55706 | 77568 | 143321 | - | - | - |
| M150 | 210 | - | 68906 | 91986 | 177281 | - | - | - |
